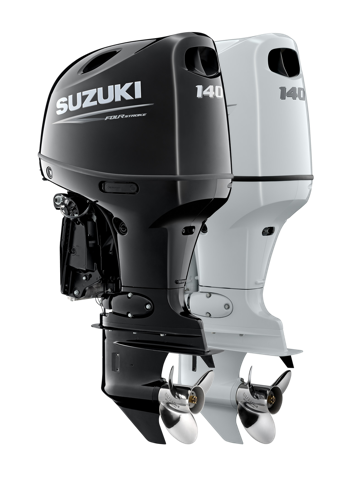

World's First Drive By Wire 115hp/140hp 4-stroke outboard

Suzuki Marine is globally recognised for making advanced technology and features available to boaters of all types - not just those who run the largest, highest-horsepower outboards. This tradition continues with the introduction of Suzuki's latest generation DF115BG and DF140BG 4-stroke outboards, the first in their class to offer all the advantages of drive-by-wire technology.

By bringing its proven drive-by-wire technology to its 115HP and 140HP in-line four-cylinder models, Suzuki is providing simplified rigging for a wide range of boat builders, along with silky smooth shifting, instant throttle response, enhanced performance and superior fuel efficiency. The reliability and precision control of Suzuki's drive-by-wire technology has been proven for years on Suzuki's popular 150HP through 350HP models.

Discover Suzuki's 3+3 year Warranty for recreational used outboards, plus other terms and conditions for commercial and government registered outboards under  Suzuki's Warranty Policy.

STEALTH LINE

Suzuki Marine's new Stealth Line now offer more of the innovative technology and uncompromising power with sleek new matte black style.

Discover the 200HP-115HP Stealth Line

Gallery

Gallery

Drive By Wire

Operation from the remote control is delivered to the outboard via an electric signal instead of the traditional mechanical control cable design.

ADVANTAGES

■ Smooth Shift & Operation.
■ Easy Rigging.
■ Increased Fuel Efficiency.
■ Luxury Remote Control.

Increased Compression Ratio

The compression ratio has been increased from 9.7:1 to 10.6:1 to achieve greater top speed and acceleration produced by the 2.0-litre displacement inline four-cylinder engines. Lean Burn fuel efficiency has also been significantly improved compared to the outgoing “A” series models. Tests have demonstrated as much as 10% improvement across mid-range to high-end cruising speeds.

ADVANTAGE

■ Improved combustion results in greater fuel efficiency compared with "A" series models.
■ 10.6:1 Compression Ratio contributes to improved engine torque.

Suzuki Micro Plastic Collecting Device (MPC)

Suzuki’s Micro-Plastic Collecting Device (MPC) is part of Suzuki’s Clean Ocean Project initiative, which collects micro-plastic by filtering the returning ocean water after it has been used for cooling the outboard motor., without any effect on performance when boating.

3 + 3 years Recreational Warranty

All recreational/privately registered Suzuki Outboards come standard with 3-years / unlimited hours manufacturer’s warranty. Recreational outboards are also eligible for a bonus 3-year Warranty providing that an authorised Suzuki Marine Dealership completes servicing as per the owners manual schedule. The Suzuki dealer must use only genuine parts and oils during both manufacturer’s and bonus warranty periods.

Features

Specifications

Recommended Transom Height L: 508mm, X: 635mm
Weight L: 188kg, X: 192kg
Valve Train DOHC 16-Valve
Piston Displacement 2,045cm³
Maximum Output 103.0kW
Control System Digital (Drive-by-wire)
Recommended Fuel RON91 / AKI87
Alternator 12V 40A
Gear Ratio 2.59 : 1 (Two-stage gear reduction)
Exhaust Through Prop Hub Exhaust
Starting system Electric
Engine Type In-line 4 cylinder, 4-stroke
Fuel Delivery System Electronic Fuel Injection
Bore X Stroke 86 x 88mm
Full Throttle Operating Range 5,600 - 6,200rpm
Oil Pan Capacity 5.5L
Fuel Tank Capacity (L) -
Trim Method Power Trim and Tilt
Gear Shift F-N-R
Propeller Selection (Pitch) 15” - 25” (R/R), 17” - 23” (C/R)

Performance

Select Boat

DF140BG OUTBOARD

Select Boat

  • Edencraft 6m
  • Swift 7.6 Centre Console
  • Swift 5.7m
  • Quintrex 540 Top Ender
  • Savage Surveyor 5.5 SP

Edencraft 6m

Test conditions

  • Date

    2022-10-25

  • Crew

    4 People onboard

  • Location

    Cairns QLD

  • Temperature

    20°C

  • Condition

    Calm

DF140BG OUTBOARD tested on Edencraft 6m

Edencraft 6m

  • Hull Type

    Monohull

  • Material

    GRP

  • Length

    6.4m

  • Beam

    2.5M

  • Dry Weight

    2500kg

  • Max Horsepower

    280hp

  • Fuel Capacity

    350L

  • Weight as tested

    2500kgkg

  • Steering Type

    Hydraulic

DF140BG

  • Horsepower

    140hp

  • Cylinder

    4

  • Mounting hole position

  • Weight

    192kg

  • Gear Ratio

    2.59:1

  • Propeller

    Watergrip Stainless steel

  • Number of Engines

    2

Conclusion

  • Optimal Cruise Speed

    4500 rpm @ 1.3 KM per litre

  • Cruise Range (Approx)

    210 NM or 389 km

  • Maximum Speed

    44 Knots or 81.5 km/h

  • 0-40km/h

    3.5 Seconds

Results on individual boats may vary due to many factors, including weather, tides, boat load, hull, lower unit & propeller conditions. Suzuki Australia P/L accepts no responsibility for the accuracy of these readings.

DF140BG performance figures

Edencraft 6m

  • RPM

    Av KM/H

    L/Hr

    Av L/KM

  • 600

    3.3

    2

    1.65

  • 1000

    4.4

    3.4

    1.29

  • 1500

    7.5

    5.6

    1.34

  • 2000

    11

    8.8

    1.25

  • 2500

    13

    14.2

    0.92

  • 3000

    21

    20.8

    1.01

  • 3500

    31

    26.2

    1.18

  • 4000

    39

    32.8

    1.19

  • 4500

    51.2

    39.5

    1.3

  • 5000

    57.2

    55

    1.04

  • 5500

    64.8

    79.8

    0.81

  • 6000

    74.1

    94.4

    0.78

  • 6150

    81.5

    110

    0.74

DF140BG fuel consumption comparison

Swift 7.6 Centre Console

Test conditions

  • Date

    2022-06-22

  • Crew

    3 People onboard

  • Location

    Brisbane River

  • Temperature

    22°C

  • Condition

    Calm

DF140BG OUTBOARD tested on Swift 7.6 Centre Console

Swift 7.6 Centre Console

  • Hull Type

    Monohull

  • Material

    Aluminium

  • Length

    7.6m

  • Beam

    2.8M

  • Dry Weight

    2500kg

  • Max Horsepower

    280hp

  • Fuel Capacity

    300L

  • Weight as tested

    3000kg

  • Steering Type

    Hydraulic

DF140BG

  • Horsepower

    140hp

  • Cylinder

    4

  • Mounting hole position

  • Weight

    192kg

  • Gear Ratio

    2.59:1

  • Propeller

    Watergrip Stainless steel

  • Number of Engines

    2

Conclusion

  • Optimal Cruise Speed

    3500 rpm @ 1.4 Litres per KM

  • Cruise Range (Approx)

    210 NM or 389km

  • Maximum Speed

    41 Knots or 76 km/h

  • 0-40km/h

    3.5 Seconds

Results on individual boats may vary due to many factors, including weather, tides, boat load, hull, lower unit & propeller conditions. Suzuki Australia P/L accepts no responsibility for the accuracy of these readings

DF140BG performance figures

Swift 7.6 Centre Console

  • RPM

    Av KM/H

    L/Hr

    Av L/KM

  • 600

    5

    2.3

    2.2

  • 1000

    6

    3

    2

  • 1500

    10

    5.3

    1.9

  • 2000

    12

    8.6

    1.4

  • 2500

    16

    16

    1

  • 3000

    25

    19.2

    1.3

  • 3500

    35

    25

    1.4

  • 4000

    45

    34.6

    1.3

  • 4500

    52

    43.3

    1.2

  • 5000

    60

    60

    1

  • 5500

    70

    77.8

    0.9

  • 6000

    74

    92.5

    0.7

  • 6400

    76

    95.6

    0.6

DF140BG fuel consumption comparison

Swift 5.7m

Test conditions

  • Date

    2022-04-04

  • Crew

    3 People onboard

  • Location

    Gold Coast

  • Temperature

    24°C

  • Condition

    Calm

DF140BG OUTBOARD tested on Swift 5.7m

Swift 5.7m

  • Hull Type

    Mono

  • Material

    Aluminium

  • Length

    5.7m

  • Beam

    2.4M

  • Dry Weight

    1089kg

  • Max Horsepower

    140hp

  • Fuel Capacity

    150L

  • Weight as tested

    N/Akg

  • Steering Type

    Hydraulic

DF140BG

  • Horsepower

    140hp

  • Cylinder

    In-line 4

  • Mounting hole position

  • Weight

    192kg

  • Gear Ratio

    2.59:1

  • Propeller

    ALLOY

  • Number of Engines

    1

Conclusion

  • Optimal Cruise Speed

    4500 rpm @ 2.04 Litres per km

  • Cruise Range (Approx)

    305km

  • Maximum Speed

    36 knots or 66.5 km/h

  • 0-40km/h

    4.0 Seconds

Results on individual boats may vary due to many factors, including weather, tides, boat load, hull, lower unit & propeller conditions. Suzuki Australia P/L accepts no responsibility for the accuracy of these readings.

DF140BG performance figures

Swift 5.7m

  • RPM

    Av KM/H

    L/Hr

    Av L/KM

  • 700

    3.7

    0.5

    7.04

  • 1000

    7.4

    2.1

    3.52

  • 1500

    9.3

    3.3

    2.78

  • 2000

    11.1

    5.5

    2.04

  • 2500

    14.8

    8.9

    1.67

  • 3000

    18.5

    11.1

    1.67

  • 3500

    24.1

    18.6

    1.3

  • 4000

    37

    20

    1.85

  • 4500

    46.3

    22.7

    2.04

  • 5000

    51.9

    28

    1.85

  • 5500

    59.3

    40

    1.48

  • 6000

    64.8

    50

    1.3

  • 6250

    66.7

    72

    0.93

DF140BG fuel consumption comparison

Quintrex 540 Top Ender

Test conditions

  • Date

    2021-07-14

  • Crew

    2 People onboard

  • Location

    Gold Coast

  • Temperature

    19°C

  • Condition

    Calm

DF140BG OUTBOARD tested on Quintrex 540 Top Ender

Quintrex 540 Top Ender

  • Hull Type

    Mono

  • Material

    Aluminium

  • Length

    5.68m

  • Beam

    2.3M

  • Dry Weight

    577kg

  • Max Horsepower

    140hp

  • Fuel Capacity

    95L

  • Weight as tested

    820kg

  • Steering Type

    Hydraulic

DF140BG

  • Horsepower

    140hp

  • Cylinder

    4

  • Mounting hole position

  • Weight

    181kg

  • Gear Ratio

    2.59:1

  • Propeller

    Alloy

  • Number of Engines

    1

Conclusion

  • Optimal Cruise Speed

    4000 rpm @ 2.79 km per litre

  • Cruise Range (Approx)

    136 NM or 252 km

  • Maximum Speed

    39 knots or 72 km/h

  • 0-40km/h

    4 Seconds

Results on individual boats may vary due to many factors, including weather, tides, boat load, hull, lower unit & propeller conditions. Suzuki Australia P/L accepts no responsibility for the accuracy of these readings.

DF140BG performance figures

Quintrex 540 Top Ender

  • RPM

    Av KM/H

    L/Hr

    Av L/KM

  • 700

    4

    0.9

    4.44

  • 1000

    7

    1.6

    4.38

  • 1500

    11

    2.8

    3.93

  • 2000

    12

    4.5

    2.67

  • 2500

    15

    6.9

    2.17

  • 3000

    18

    10.1

    1.78

  • 3500

    35

    12.7

    2.76

  • 4000

    43

    15.4

    2.79

  • 4500

    49

    19.8

    2.47

  • 5000

    50

    26.2

    1.91

  • 5500

    60

    34

    1.76

  • 6000

    66

    43

    1.53

DF140BG fuel consumption comparison

Savage Surveyor 5.5 SP

Test conditions

  • Date

    2021-03-26

  • Crew

    3 People onboard

  • Location

    Williamstown VIC

  • Temperature

    21°C

  • Condition

    Calm

DF140BG OUTBOARD tested on Savage Surveyor 5.5 SP

Savage Surveyor 5.5 SP

  • Hull Type

    Mono

  • Material

    Fibreglass

  • Length

    5.5m

  • Beam

    2.26M

  • Dry Weight

    750kg

  • Max Horsepower

    175hp

  • Fuel Capacity

    120L

  • Weight as tested

    1000kg

  • Steering Type

    Hydraulic

DF140BG

  • Horsepower

    140hp

  • Cylinder

    In-line 4

  • Mounting hole position

  • Weight

    181kg

  • Gear Ratio

    2.59:1

  • Propeller

    Alloy

  • Number of Engines

    1

Conclusion

  • Optimal Cruise Speed

    4000 rpm @ 3.3. km per litre

  • Cruise Range (Approx)

    205NM or 380km

  • Maximum Speed

    35 knots or 65 km/h

  • 0-40km/h

    N/A Seconds

Results on individual boats may vary due to many factors, including weather, tides, boat load, hull, lower unit & propeller conditions. Suzuki Australia P/L accepts no responsibility for the accuracy of these readings.

DF140BG performance figures

Savage Surveyor 5.5 SP

  • RPM

    Av KM/H

    L/Hr

    Av L/KM

  • 700

    3

    0.6

    5

  • 1000

    6

    1.2

    1.8

  • 1500

    8

    2.4

    3.3

  • 2000

    10

    5.2

    3.3

  • 2500

    13

    5.2

    2.5

  • 3000

    15

    7.5

    2

  • 3500

    28

    11.2

    2.5

  • 4000

    38

    11.4

    3.3

  • 4500

    43

    17.2

    2.5

  • 5000

    50

    20

    2.5

  • 5500

    56

    28

    2

  • 6000

    61

    42.7

    1.42

  • 6300

    65

    45

    1.42

DF140BG fuel consumption comparison
